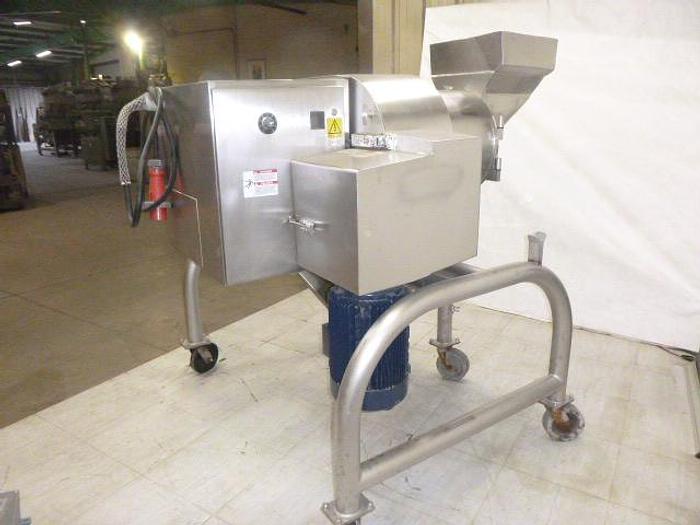

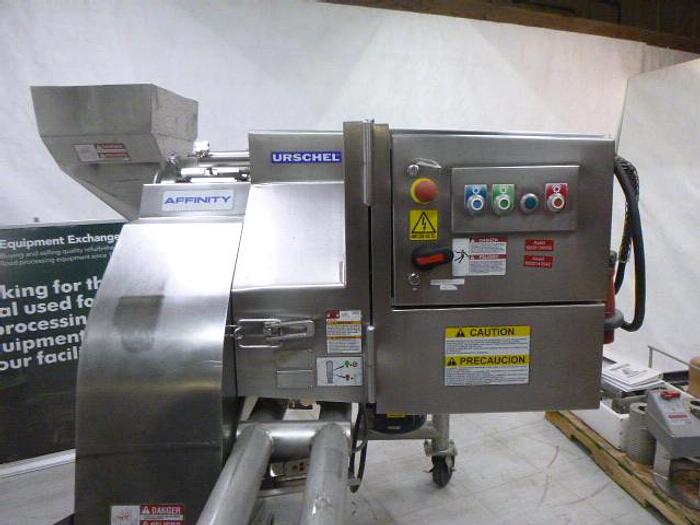

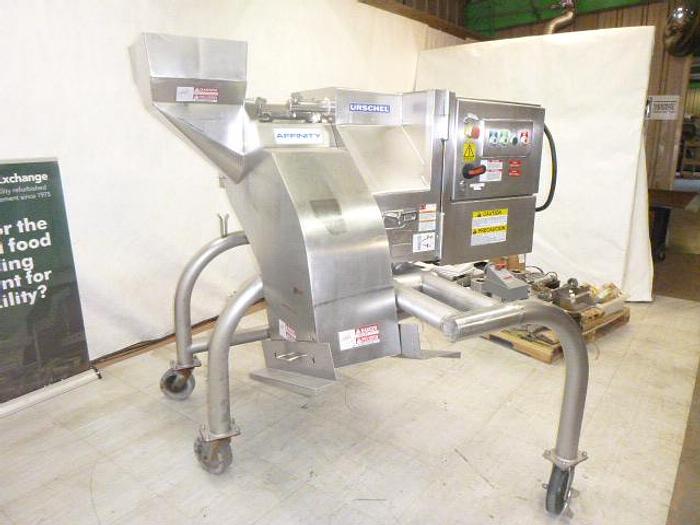

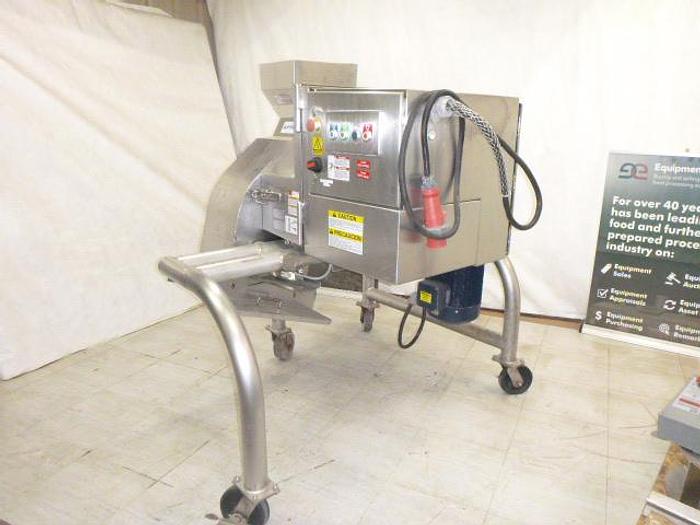

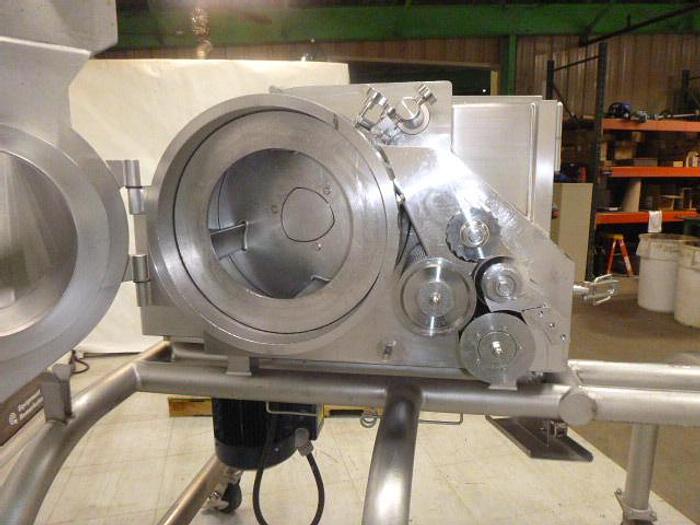

Urschel Affinity Dicer, High Capacity USDA dice and strip cutter

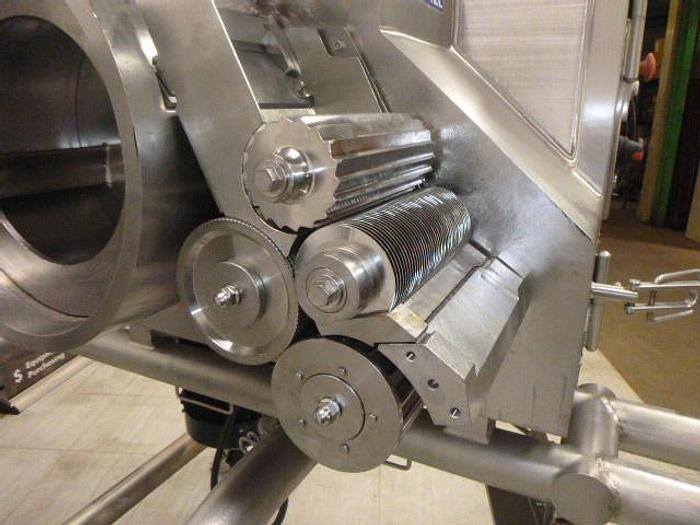

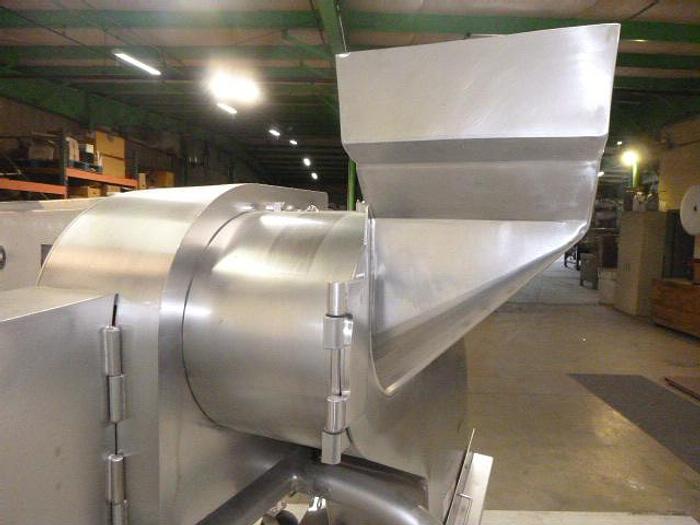

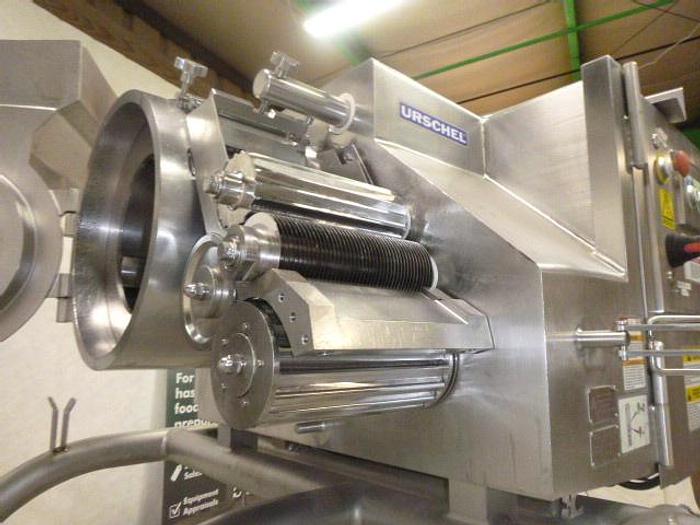

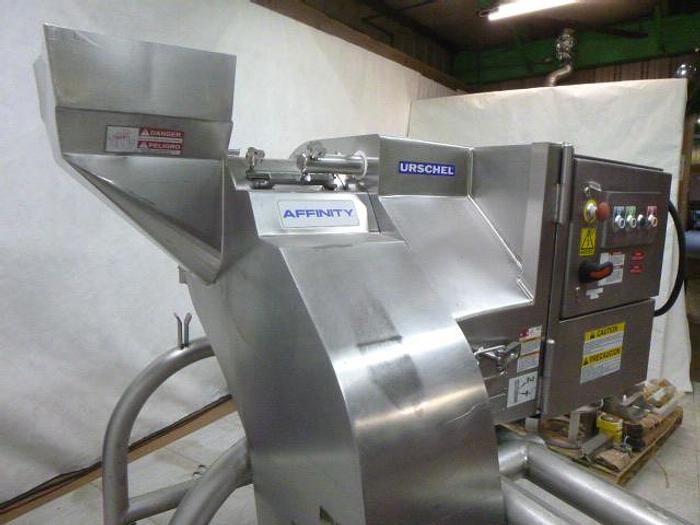

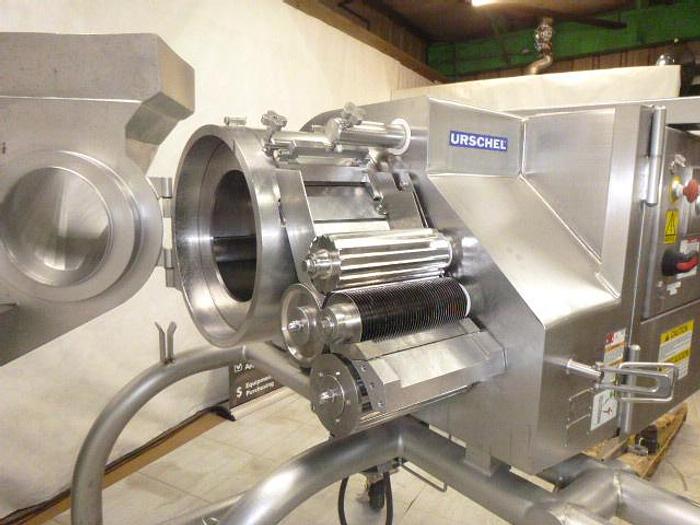

The Affinity® Dicer (MAFF) U.S.D.A. has the ability to process high-fat, cold-temperature and otherwise normally difficult products. The feed roll and feed drum offer additional assistance transitioning product throughout the cutting zone. Sanitary stainless steel design. Food zone is completely separate from mechanical zone. Rounded tube frame limits microbial surface area and promotes self-draining. The dicer provides 2- or 3-dimensional cutting by adjusting the slice thickness, crosscut, and circular knife spindles for a full range of dices, crumbles/granulation, or strips. The Affinity accepts a wide range of in-feed products in different shapes and sizes. Large in-feed hopper accepts products up to 7" (178 mm).

• Maximum power to deliver maximum capacity.
• Robust, heavy-duty sanitary dicer. Dicer design incorporates food contact surfaces highly polished to an Ra 32 finish.
• Food zone completely separate from the mechanical zone to ensure sanitation.
• Hinged swing away panels ease maintenance. Rounded tube frame and angled/rounded surfaces ease wash-downs and deter bacterial growth.
• Dicer designed for continuous operation for uninterrupted production.

Has the ability to process high-fat, cold-temperature and otherwise normally difficult products. 2- or 3-dimensional cutting is accomplished by adjusting the slice thickness, crosscut, and circular knife spindles for a full range of dices, crumbles/granulation, or strips.

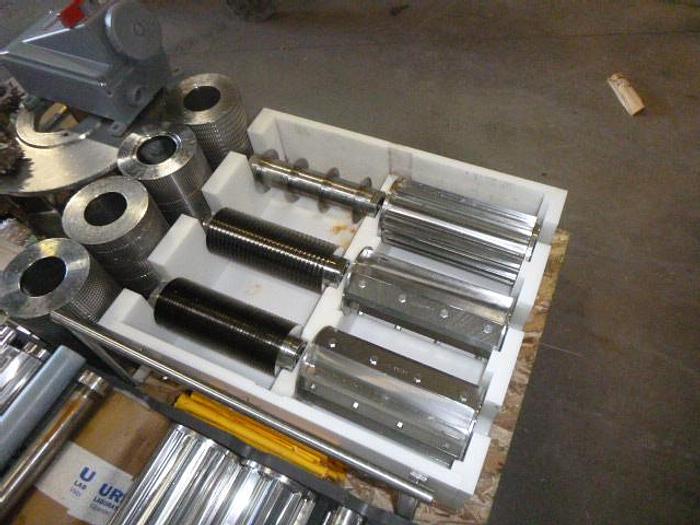

Circular options: 1/4", 3/8", 1/2", 2", and 3"

Crosscut Options: 1/8", 1/4", 1/2", and 1"

Feed roll Options: 3.75", and 4"

Feed Drum Options: 1/8", 1/4", and 1/2"

Stripper Plate Options: 1/2", 3/8", and 1/4".

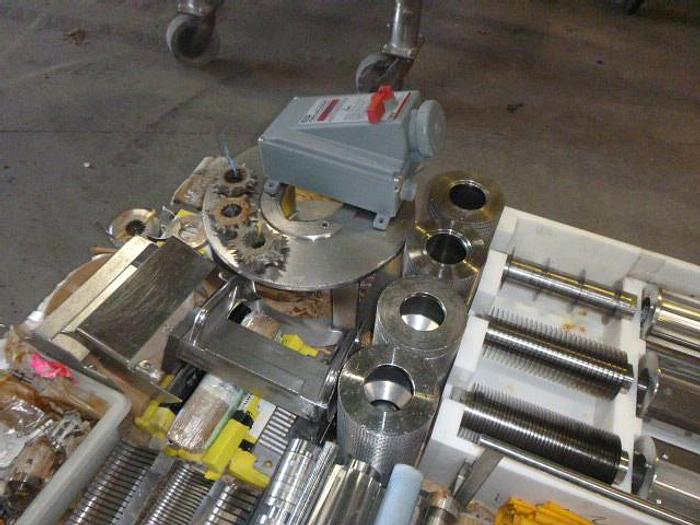

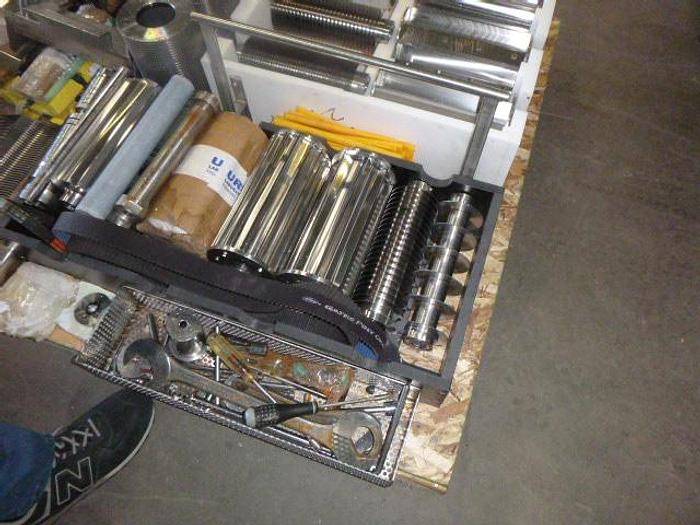

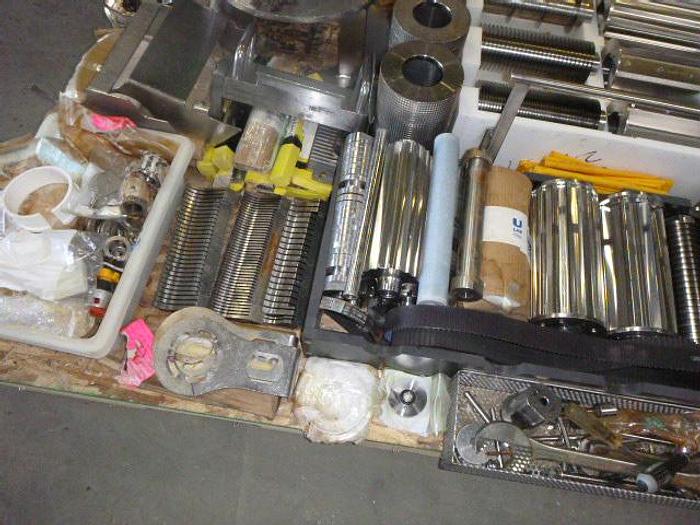

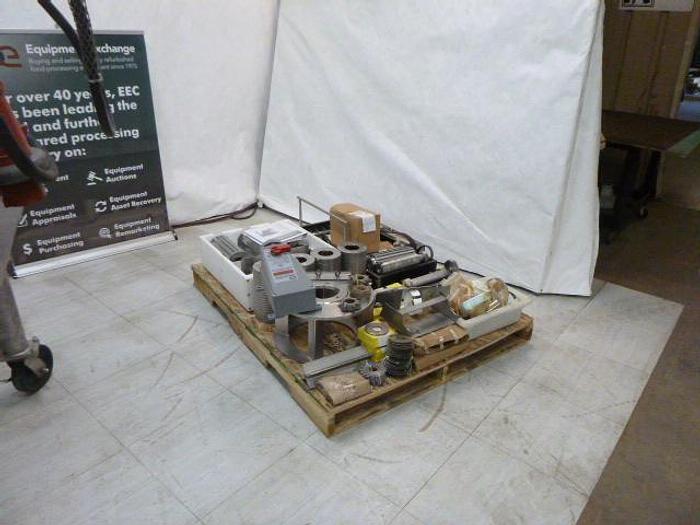

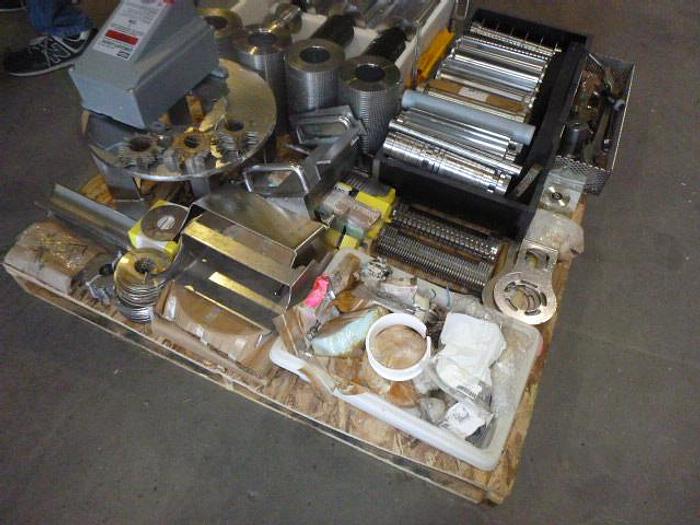

Based on various cutting assemblies and changing of the HZ on the VFD for the cross cut assembly many variations of dice sizes are possible. All change parts and spare parts shown in photos are included in the sale price.

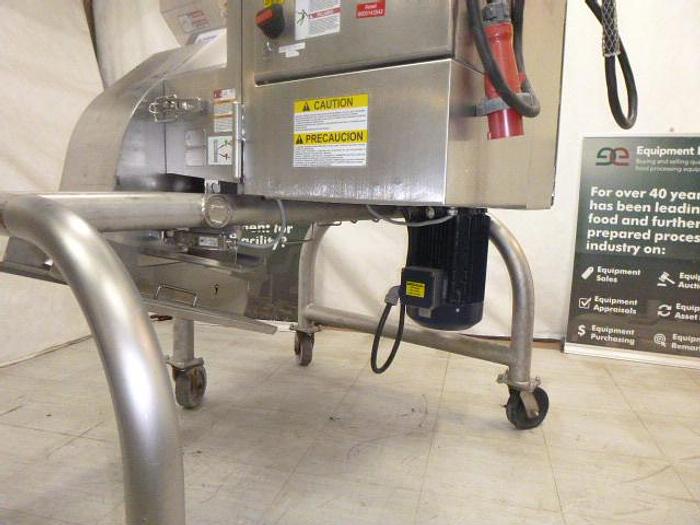

The dicer is 230/460V, 3 phase. Fob Lake City, PA.
